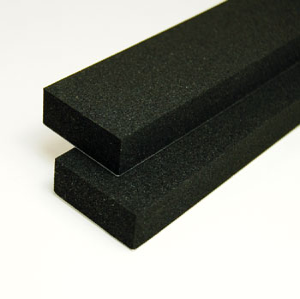

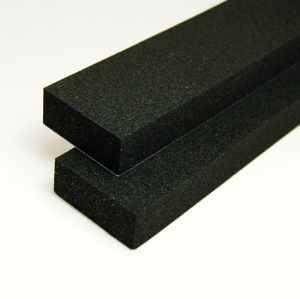

Reticulated, open cell polyester based polyurethane foam, with FR additive to FMVSS302 flame retardancy standard.
Product Description
DESCRIPTION: A Reticulated, open cell polyester based polyurethane foam, with FR additive to FMVSS302 flame retardancy standard. The completely open cellular structure results from the thermal reticulation process making the foam ideal for filtration applications. These materials are resistant to mild acids and alkalis, fuel, organic chemicals, oils lubricants, soaps and detergents.
APPLICATION : Mainly used as air filters in automotive, heating and ventilation, and
air conditioning industries; where flame retardancy is required.
PROPERTIES :
PRODUCT : CFS R FR 10ppi 20ppi 30ppi 45ppi 60ppi 80ppi
COLOUR : All Charcoal Grey
DENSITY Kg/m3 : All 26 – 32 (ISO 845)
COMPRESSION RESISTANCE : All 2.5 – 5.0 (ISO 3386) 40% K/Pa
ELONGATION AT BREAK : >150 >200 >200 >200 >200 >250 (ISO 1798)%
TENSILE : >60 >100 >130 >150 >150 >150
STRENGTH
(ISO 1798) KPA
CELL COUNT (PPI) : 7-15 15-25 25-35 35-50 50-70 70-90
TEMP RANGE : All PPI -40 to +120
MAX CONST TEMP : All PPI +70
FLAME RETARDANCY : All pass
(FMVSS302)
