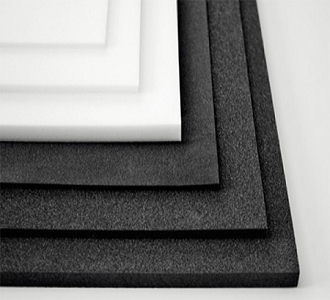

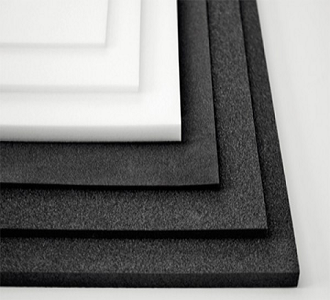

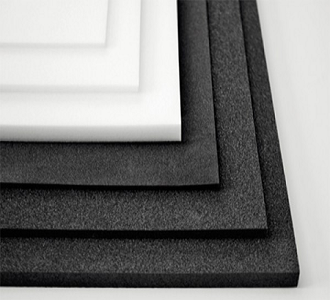

DESCRIPTION: LD45 is a closed cell polyethylene foam which is produced as a pure chemically inert foam without blowing agent residues. The foam has a uniform cell structure with regular cell walls, this regularity results in consistent physical and mechanical properties.
APPLICATION: LD45 is suitable for a variety of applications. It is an effective replacement for Neoprene and natural rubbers, PVC foam, polyurethane foam etc. This foam can be used in a wide application area including:defence, electronics, leisure and packaging for sealing gasketing, cushion packaging, vibration and insulation pads, case inserts, buoyancy aids, body protection, leisure / sports padding etc.
COLOURS: Black oe White
DENSITY Kg/m3 :40 – 50
COMPRESSION : (a) 50% compression for 48 hours
SET @ 23 C 1/2 hr recovery 22% set
MAXIMUM : Up to 50 C 14 Kn/m2
RECOMMENDED Above 50 C 8.5 Kn/m2
OPERATING : – 70 C to +95 C
TEMP.RANGE
FMVSS302 : Pass at 5mm thickness and above
ELONGATION AT BREAK %: 150
WATER ABSORPTION : 1 Day < 0.1
(DIN 53428 1986) 28 Days < 0.5
% VOL
N.B – THIS FOAM IS ALSO AVAILABLE IN A FR VERSION FOR USE IN AVIATION.
LD45 is a closed cell polyethylene foam which is produced as a pure chemically inert foam without blowing agent residues.
